On Off Grid Micro Inverter Solar Power Energy System 400w 600w 800W For Home Balcony

Name: On Off Grid Micro Inverter Solar Power Energy System 400w 600w 800W For Home Balcony
Brand: AHONY or customized
Price: 391.80 USD

Buy cheap On Off Grid Micro Inverter Solar Power Energy System 400w 600w 800W For Home Balcony product

Place of Origin : Guangdong, China

Brand Name : AHONY or customized

Model Number : BSS400W

Packaging Details : 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

Price : $391.80/pieces >=1 pieces

Warranty : 1 year

Application : Home

Solar Panel Type : Monocrystalline Silicon

Controller Type : MPPT

Mounting Type : Roof Mounting

Certificate : CE/ROHS/ISO

Pre-sales project design : Y

Model : BSS400W

Type : DC/AC Inverters

MPPT Voltage Range : 30-60 V DC

Customized : OEM ODM Accept

Contact Now

Home Balcony Solar Panel 400w 600w 800W On Off Grid Micro Inverter Solar Energy

Specification

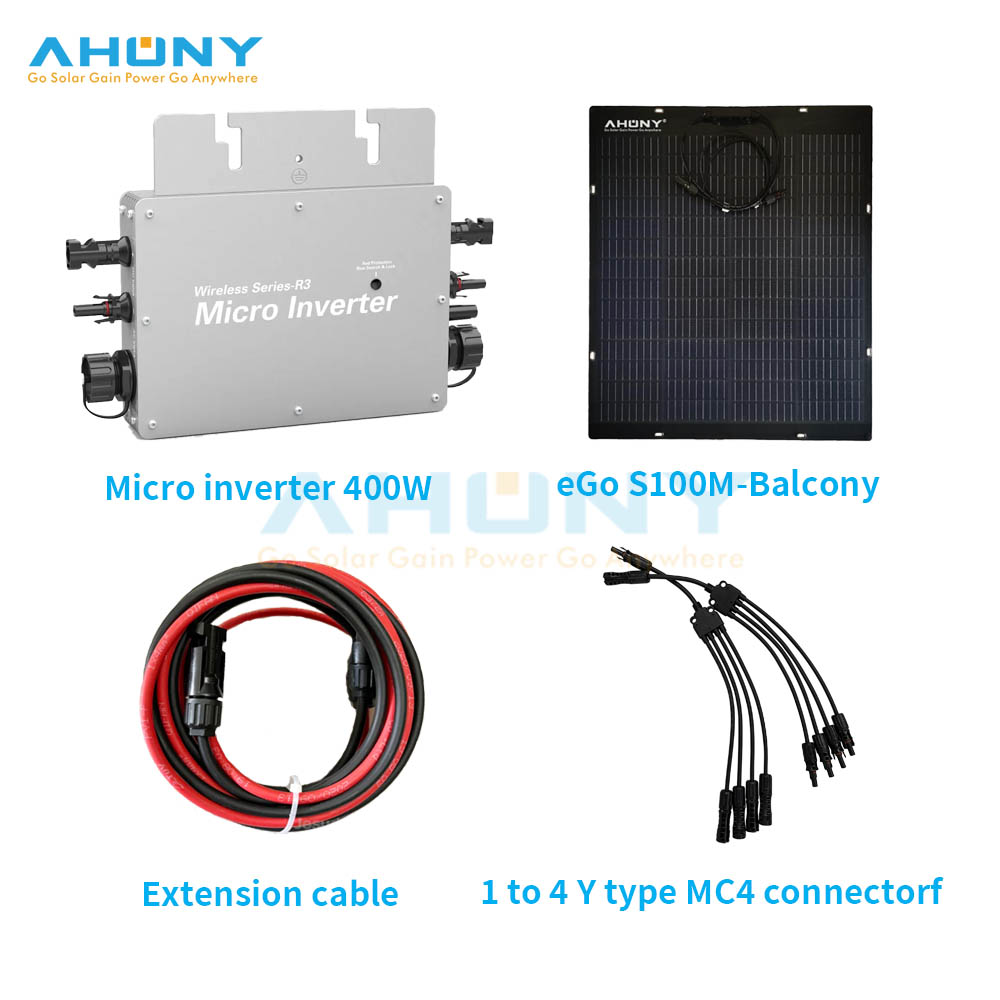

Balcony Solar System BSS400W List
NO	Model	Configuration	Qty	Unit
1	eGo S100M-Balcony	Mono solar panel 100w size:6909002, XC502 Jbox on front	4	pieces
1	eGo S100M-Balcony	Mono solar panel 100w size:6909002, XC502 Jbox on front	4	pieces	2	size:6909002, XC502 Jbox on front
2	APMI-600	on grid solar inverter 600w Maximum input DC Voltage:60V MPPT Voltage Range 30-60V	1	set

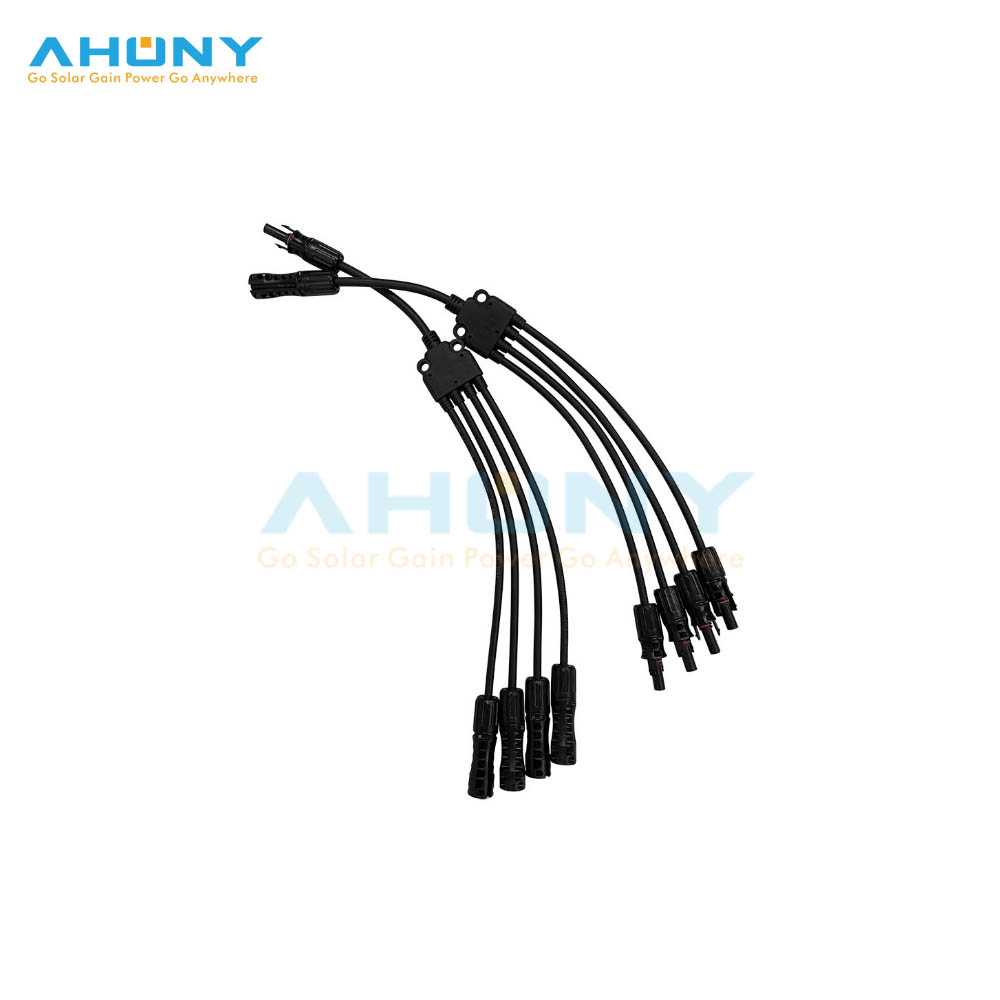

3	Parallel use connector	1 to 4 Y type MC4 connectorf	1	set
4	Extension cable	5m extenstion cable MC4 to MC4	1	meters

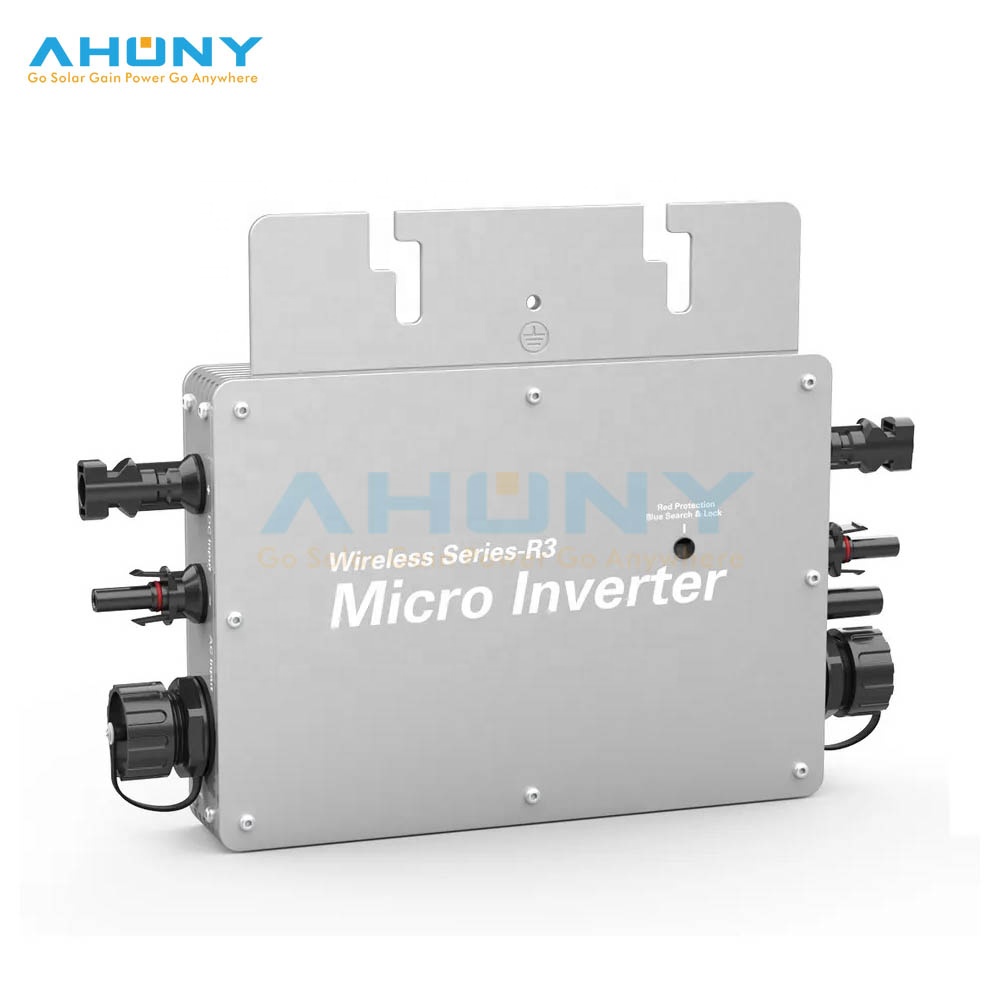

Micro Inverter
Model Number	AMPI-400
Common module power (W)	Max 500W
Peak Power MPPT Voltage Range(V)	30-60
Start-up voltage (V)	22
Operating Voltage Range (V)	60
Maximum input voltage (V)	18
Maximum input current (A)	20
Maximum input short-circuit current (A)	0
Rated output power (VA)	400
Rated output current (A)	@120V 3.3A
Rated output current (A)		@230V 1.7A
Nominal Output Voltage/Range (V)	@120V 85-160VAC
Nominal Output Voltage/Range (V)		@230V 180-265VAC
Nominal Frequency/Range (Hz)	@120V 48-51Hz/58-61Hz
Nominal Frequency/Range (Hz)		@230V 48-51Hz/58-61Hz
Power Factor	>0.99 default
Power Factor		0.8 leading...0.8 lagging
Output current harmonic distortion	<3%
Maximum unit per branch	@120V 6 PCs
Maximum unit per branch		@230V 12Pcs

Ultralight balcony solar panel
Model Number	eGo S100M-Balcony
Maximum Power[Wp]	100
Solar Cell	HJT HCF solar cell
Cell Array[Pcs]	4*14
Cell Efficiency	22.70%
Size[mm]	6909002
Max Power Voltage Vmp[V]	35.16
Max Power Current Imp[A]	2.84
Open Circuit Voltage Voc[V]	41.14
Short Circuit Current Isc[A]	3.07
Net.Weight[kg]	1.7
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.252
Temperature Coefficient Voc[[%/℃]	-0.227
Temperature Coefficient Isc[[%/℃]	-0.227
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[A]	IR<2A-0
Certification	CE ROHS
Surface/Backsheet	ETFE+AP2
Maximum bend radius(θ)	60°
Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets and velcro
Selling point	High quality HJT solar cell,superior weak light performance,produce more power when install vertically
		Vibration resistant AP2 material,allow bleeze to hit panel and no inner cell crack,more durable
		quick connect and easy to fix on balcony fence
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

Product Description

On Off Grid Micro Inverter Solar Power Energy System 400w 600w 800W For Home Balcony

FAQ

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Western Europe(35.00%),North America(16.00%),Oceania(15.00%),Eastern Europe(8.00%),Northern Europe(8.00%),Domestic Market(5.00%),Eastern Asia(5.00%),Mid East(4.00%),Southeast Asia(4.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
flexible solar panel,folding solar kit,mono solar panel,12v solar panel,folding solar blanket

4. why should you buy from us not from other suppliers?
We produce,R&D ETFE flexible,walkable,foldable solar panel,the team has more than 12 years solar experience,all panels produce under laser cutting,automatically welding,with very strict test IV,EL and QA management.CE,ROHS,EN61215 61730,ISO,IEC,patents.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
