Home On Grid Solar Power Energy System 400w 600w 800w Smart Micro Inverter

Place of Origin : Guangdong, China

Brand Name : AHONY or Customized

Model Number : BSS600W

Packaging Details : 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

Price : $537.80/pieces >=1 pieces

Warranty : 1 year

Free installation service : NO

Application : Home,balcony

Solar Panel Type : Monocrystalline Silicon

Battery Type : HJT

Controller Type : MPPT

Mounting Type : Roof Mounting

Certificate : CE/ROHS/ISO

Pre-sales project design : Y

Model : BSS600W

Type : DC/AC Inverters

MPPT Voltage Range : 30-60 V DC

Output Current : 120V 5A / 230V 2.6A

Customized : OEM ODM Accept

Contact Now

Germany Solar Panels On Grid 400w 600w 800w Smart Micro Inverter Balkonkraftwerk For Home Use Balcony Solar System

Specification

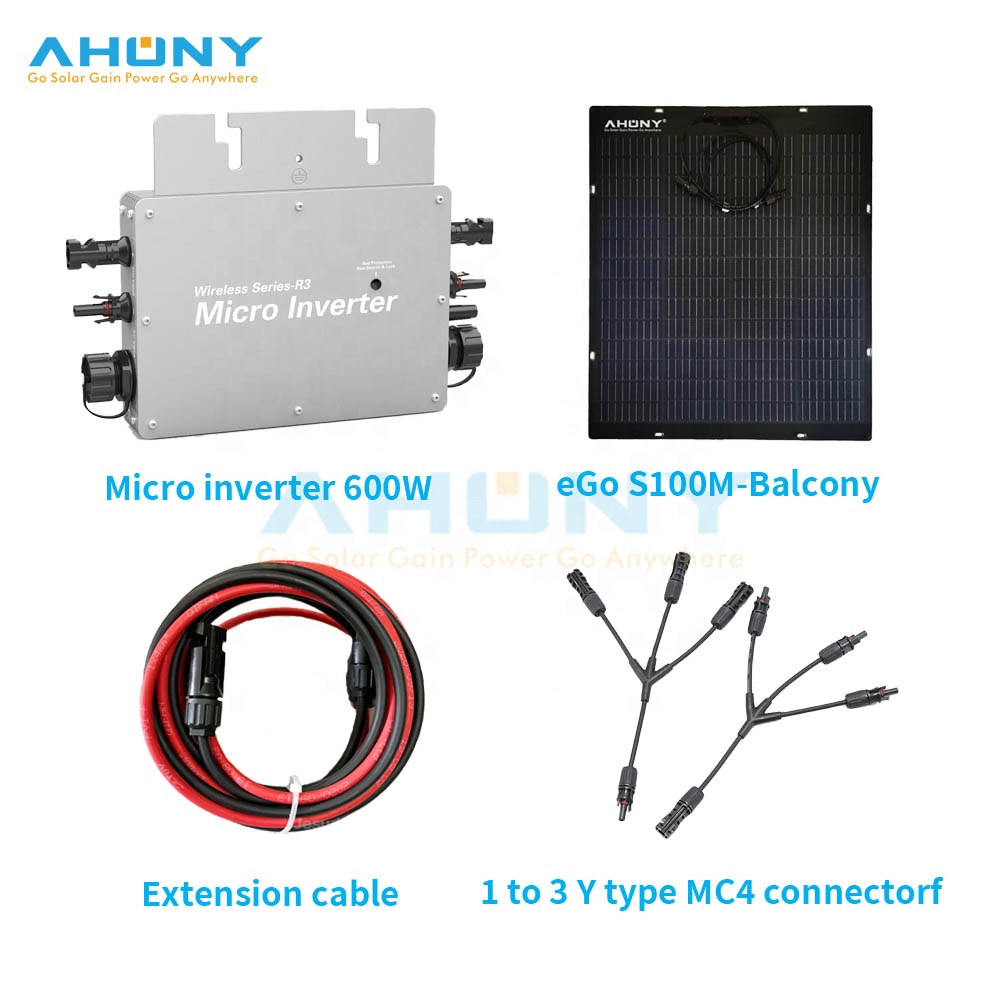

Balcony Solar System BSS600W List




NO
Model
Configuration
Qty
Unit
1
eGo S100M-Balcony
Mono solar panel  100w
size:690*900*2,                                  XC502 Jbox on front
6
pieces
2

size:690*900*2, XC502 Jbox on front


2
APMI-600
on grid solar inverter 600w Maximum input DC Voltage:60V MPPT Voltage Range 30-60V
1
set
3
Parallel use connector
1 to 3 Y type MC4 connectorf
2
set
4
Extension cable
5m extenstion cable MC4 to MC4
1
meters
Micro Inverter




Model Number
AMPI-600



Common module power (W)
Max 2*375W



Peak Power MPPT Voltage Range(V)
30-60



Start-up voltage (V)
22



Operating Voltage Range (V)
60



Maximum input voltage (V)
2×14



Maximum input current (A)
2×16



Maximum input short-circuit current (A)
0



Rated output power (VA)
600



Rated output current (A)
@120V 5A




@230V 2.6A



Nominal Output Voltage/Range (V)
@120V 85-160VAC




@230V 180-265VAC



Nominal Frequency/Range (Hz)
@120V 48-51Hz/58-61Hz




@230V 48-51Hz/58-61Hz



Power Factor
>0.99 default




0.8 leading...0.8 lagging



Output current harmonic distortion
<3%



Maximum unit per branch
@120V 6 PCs




 @230V 12Pcs

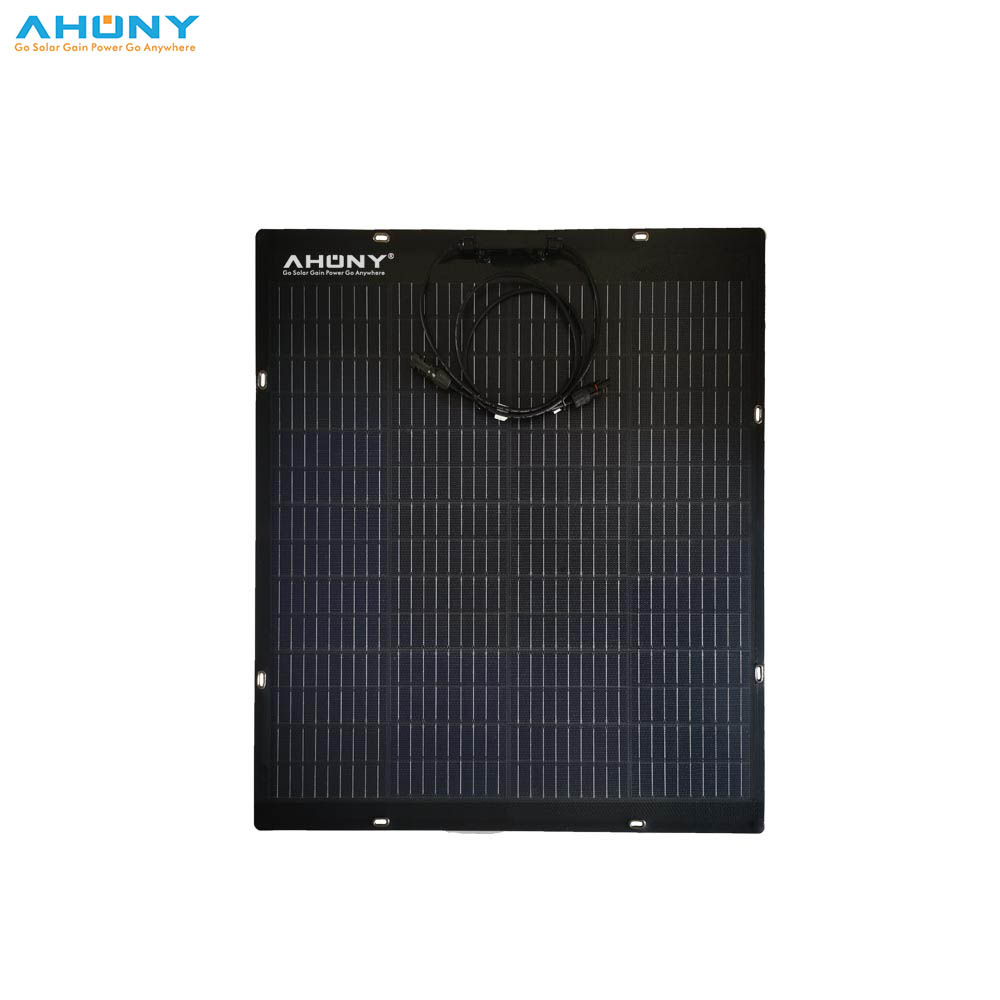

Ultralight balcony Solar Panel




Model No.
eGo S100M-Balcony



Maximum Power[Wp]
100



Solar Cell
HJT HCF solar cell



Cell Array[Pcs]
4*14



Cell Efficiency
22.7%



Size[mm]
690*900*2



Max Power Voltage Vmp[V]
35.16



Max Power Current Imp[A]
2.84



Open Circuit Voltage Voc[V]
41.14



Short Circuit Current Isc[A]
3.07



Net.Weight[kg]
1.7



Power tolerance[%]
±3%



NOCT[℃]
45±2



Operating Temperature[℃]
-40/+85



Temperature Coefficient Pmax[%/℃]
-0.252



Temperature Coefficient Voc[[%/℃]
-0.227



Temperature Coefficient Isc[[%/℃]
-0.227



Maximum System Voltage[V]
1000V



Maximum Reverse Current[A]
IR＜2A-0



Certification
CE ROHS



Surface/Backsheet
ETFE+AP2



Maximum bend radius(θ)
60°



Cables and Connectors
PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector



Standard Test Conditions
STC: 1000W/m², AM 1.5 and cell temp 25°C



Other notes

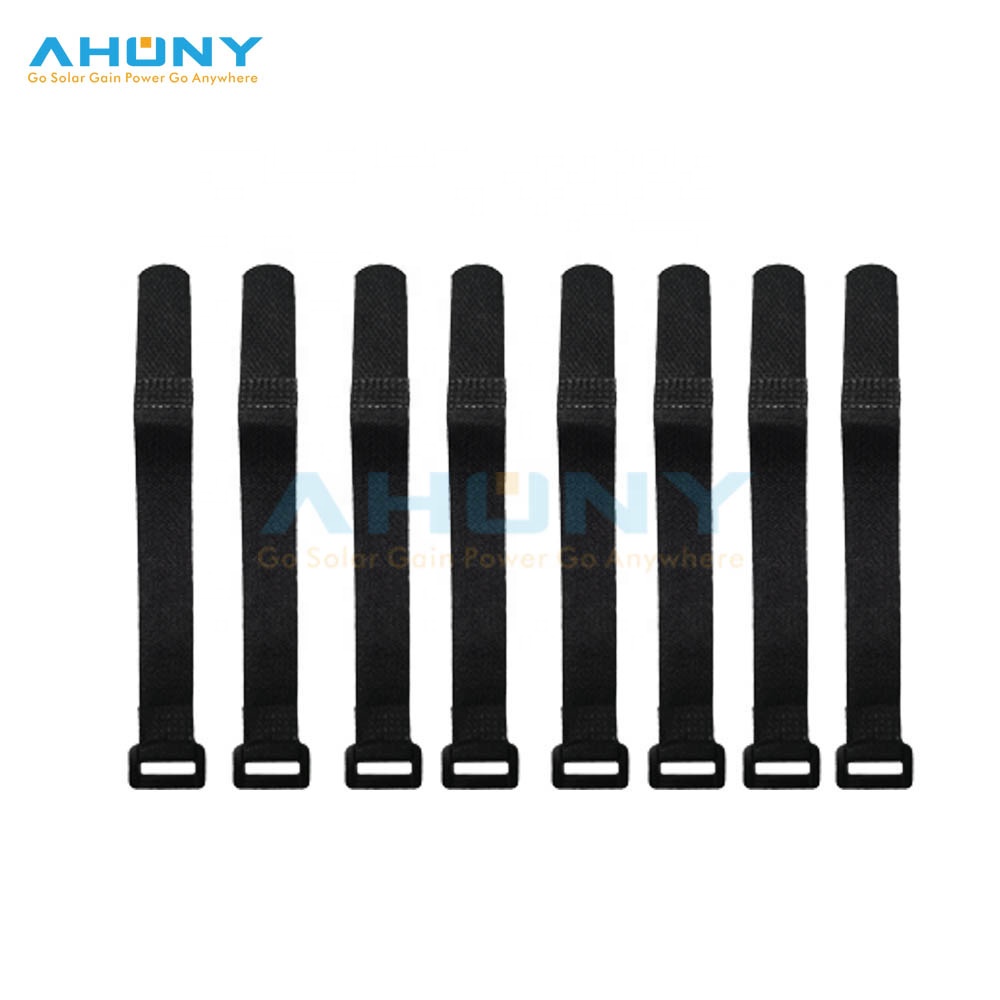

round corner R10,with eyelets and velcro



Selling point
High quality HJT solar cell,superior weak light performance,produce more power when install vertically




Vibration resistant AP2 material,allow bleeze to hit panel and no inner cell crack,more durable




quick connect and easy to fix on balcony fence



Package
1pcs/Polyethylene foam(EPE Foam),then in 1 carton box



Product Description
Home On Grid Solar Power Energy System 400w 600w 800w Smart Micro Inverter
Home On Grid Solar Power Energy System 400w 600w 800w Smart Micro Inverter
Home On Grid Solar Power Energy System 400w 600w 800w Smart Micro Inverter
Home On Grid Solar Power Energy System 400w 600w 800w Smart Micro Inverter

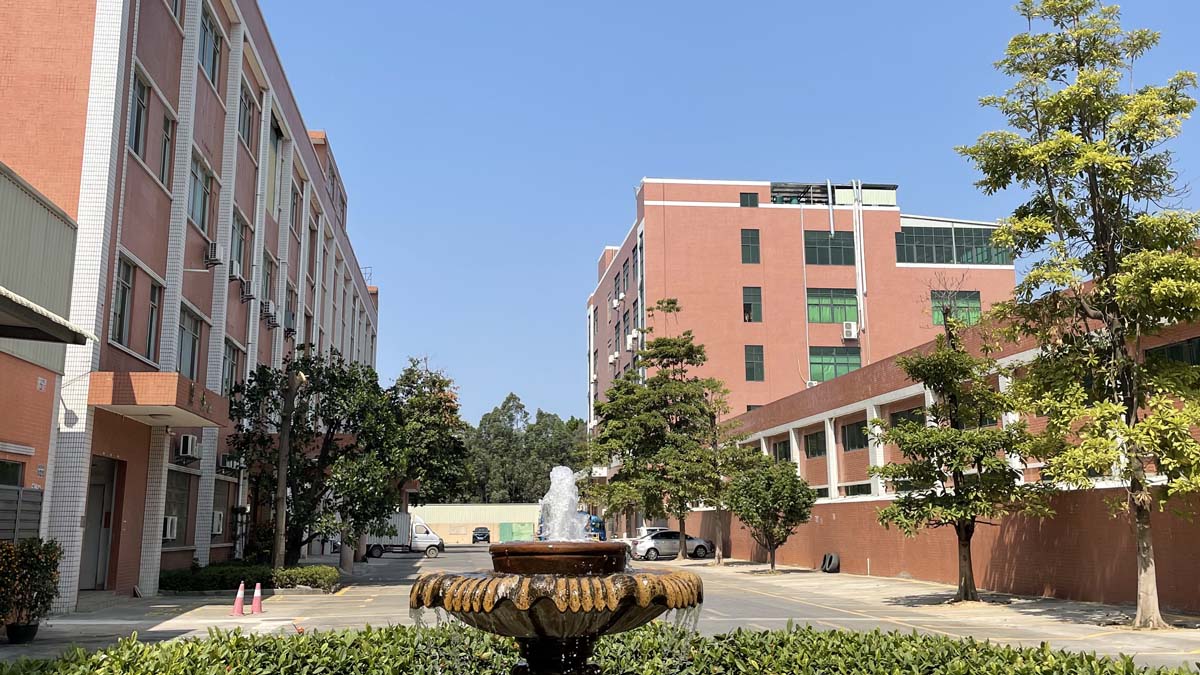

Company Profile

Home On Grid Solar Power Energy System 400w 600w 800w Smart Micro Inverter
Home On Grid Solar Power Energy System 400w 600w 800w Smart Micro Inverter
Home On Grid Solar Power Energy System 400w 600w 800w Smart Micro Inverter
AHONY POWER was founded in Shenzhen,southest China nearby Hongkong,Dongguan,Huizhou.Our team have more than 12 years solar experience,including producing,marketing,R&D.Ahony owns 4 official issued solar patents,1 of which is invention patent.We've managed under ISO quality system,products are certified by CE,ROHS,SGS,IEC. Product range is:ETFE PET fibreglass flexible solar panel,semi rigid solar module,glass solar panel,foldable solar kit.Both regular cells and USA SunPower cells. For every product offered by Ahony,we have strict producing process,quality inspection process and testing process.Ahony is dedicated to clean energy-solar technology innovation,ultralight solar panel technology,environmental friendly solar products,lighting products,power products etc.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Western Europe(35.00%),North America(16.00%),Oceania(15.00%),Eastern Europe(8.00%),Northern Europe(8.00%),Domestic Market(5.00%),Eastern Asia(5.00%),Mid East(4.00%),Southeast Asia(4.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
flexible solar panel,folding solar kit,mono solar panel,12v solar panel,folding solar blanket

4. why should you buy from us not from other suppliers?
We produce,R&D ETFE flexible,walkable,foldable solar panel,the team has more than 12 years solar experience,all panels produce under laser cutting,automatically welding,with very strict test IV,EL and QA management.CE,ROHS,EN61215 61730,ISO,IEC,patents.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
