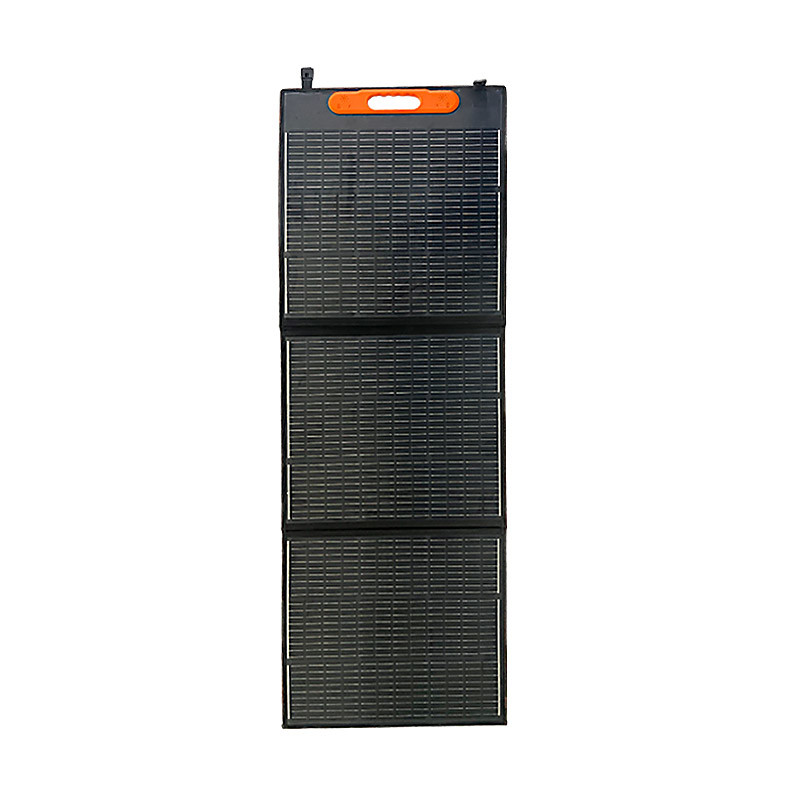

230w Mono PERC Solar Cell Foldable Portable Solar Panels suitcase blanket For Motorhome portable power generator battert

Brand Name : AHONY

Model Number : eMobi Fab 4*57.5w

Place of Origin : Guangdong, China

Packaging Details : 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

Supply Ability : 20000 Piece/Pieces per Month

MOQ : 10 pieces

Price : $168.00/pieces 10-99 pieces

Certification : CE ROHS

Payment Terms : T/T, Western Union, MoneyGram, L/C

Type : Foldable Customized Solar Panel

Size : 548*658*70mm

Cell size : 166mmx166mm

Panel Efficiency : 24%

Application : Camper retailer motorhome

solar cell : Mono,Perc solar cell,A grade Cell

Warranty : 1 year

Certificate : CE ROHS

Port : shenzhen

Contact Now

Hot Sale Portable Solar Panels Foldable 230w Solar Charging Kit Mono PERC Solar Cell For Camper Retailer Motorhome

Company Information

230w Mono PERC Solar Cell Foldable Portable Solar Panels suitcase blanket For Motorhome portable power generator battert230w Mono PERC Solar Cell Foldable Portable Solar Panels suitcase blanket For Motorhome portable power generator battert230w Mono PERC Solar Cell Foldable Portable Solar Panels suitcase blanket For Motorhome portable power generator battert

factory

eMobi FM series uses mono PERC solar cells portable solar panels foldable 230w solar kit mono PERC solar cell

High efficiency solar cell 24%

ultralight material fabric

waterproof

small size and more foldable

For outdoor,emergency medical care,camping,RV etc

More power ouput inner parallel string

Model   No. eMobi F4x57.5w
Product Name 230w Mono PERC Solar Cell Foldable Portable Solar Panels suitcase blanket For Motorhome portable power generator battert
Maximum   Power[Wp] 230
Solar Cell A grade mono 166 9BB cells
Cell   Efficiency 24%
Folded   Size[mm] 548*658*70
Open Size[mm] 548*2354*12
Max Power   Voltage Vmp[V] 20.88
Max Power   Current Imp[A] 11.02
Open Circuit   Voltage Voc[V] 24.22
Short Circuit   Current Isc[A] 11.68
Net.Weight[kg] 9/9.5
NOCT[℃] 45±2
Operating   Temperature[℃] -40/+85
Temperature   Coefficient Pmax[%/℃] -0.3
Temperature   Coefficient Voc[[mV/℃] -1.74mV
Temperature   Coefficient Isc[mA/℃] 0.05
Maximum System   Voltage[V] 200 V
Certification CE ROHS





230w Mono PERC Solar Cell Foldable Portable Solar Panels suitcase blanket For Motorhome portable power generator battert230w Mono PERC Solar Cell Foldable Portable Solar Panels suitcase blanket For Motorhome portable power generator battert230w Mono PERC Solar Cell Foldable Portable Solar Panels suitcase blanket For Motorhome portable power generator battert
